Rowhammer

What is Rowhammer?

• Physical attack on DDR3 memory
• Allows attacker to flip memory bits without directly writing them
  • Allows attacker to flip bits without even "writing" (i.e. all you need is read access)

How Does DDR3 Work?

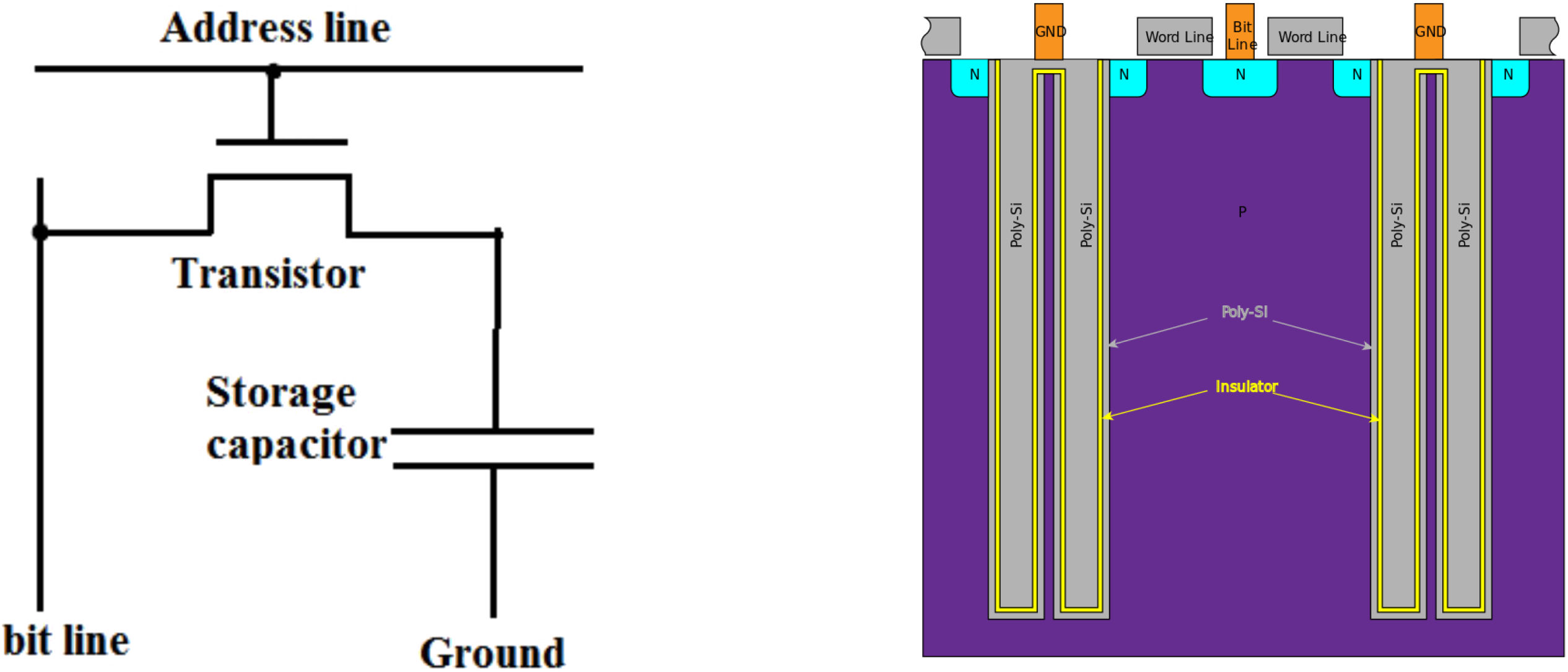

DRAM is designed to be a very compact memory architecture. The 1/0 are stored on the storage capacitor that is left floating on the storage capacitor the majority of the time. The capacitor is charged to write a 1 or discharged to write a 0. Eventually, this charge leaks over a certain amount of time. With DRAM, this needs to be refreshed. Every couple of milliseconds, the DRAM has to be re-written by the controller otherwise zeros may start to look like ones and visa-versa. Physically, the way this is built is using long, deep pieces of metal (poly) that goes in the substrate to give capacitance between two plates.

To do a DDR3 write, you pre-charge the bitline to a voltage, and a bunch of cells share a bitline. Then for the cells to write to, the address lines is raised high.

Rowhammer Flaw

• Not enough isolation between rows of DRAM
  • Only started to become a major concern with DDR3, why?
• Accessing neighboring rows can flip a bit in a "victim" row
• Doesn't require write permissions to any of the rows, why?
  • A read triggers a write
• Must be completed within a certain amount of time. Why?
  • The DRAM controller refreshes the contents in DRAM. The attack window is between refreshes

Possible Outcomes

• Data loss/corruption
• Program bugs
• Permission issues?
  • There are many permissions on Linux that are stored in a single bit

Possible Mitigations

• Error correcting memory
  • Can generally detect and correct single bit errors, and can generally detect multi-bit errors (but can't correct them)
• Increase refresh rate
  • If the refresh rate is increased, the attack window is decreased
• Memory segment isolation
  • Be more careful about where privileged code is kept in memory

Rowhammer Attacks

• Naïve attack: Wreak havoc on an unsuspecting system
  • Cause processor cache to flush repeatedly
  • Grab some random lines of memory and write all ones as fast as you can
  • Keep writing zeros to DMA buffers
  • Consequences: corrupted data, crashing programs
• Smart attack: Root a system or exfiltrate data
  • Find susceptible victim bits
  • Flip the victim

Rowhammer: Mitigations

• Android update limiting app access to large chunks of contiguous memory
• Can be mitigated by ECC

Flip Feng Shui

• Published: 2016
• Target Platform: VM with memory deduplication
• Results: Able to corrupt/modify/tweak memory in separate VM including changing public key for login access

How Flip Feng Shui Works

• The victim VM memory puts code into the host physical memory
• The attack then boots up, and puts the same code into the host memory
• The host then sees they are the same, and points them to the same space

Rambleed Attack

• Target Platform: Any/Ubuntu
• Results: Able to exfiltrate bits and reconstruct 2048 bit RSA key

How Rambleed Attack Works

• Get access to parts of rows containing secret key
• Put a blank page of memory with known bit-flip vulnerabilities next to key
• Hammer secret key rows to transfer bits to your page
• Use timing attack to determine if ECC is engaging
